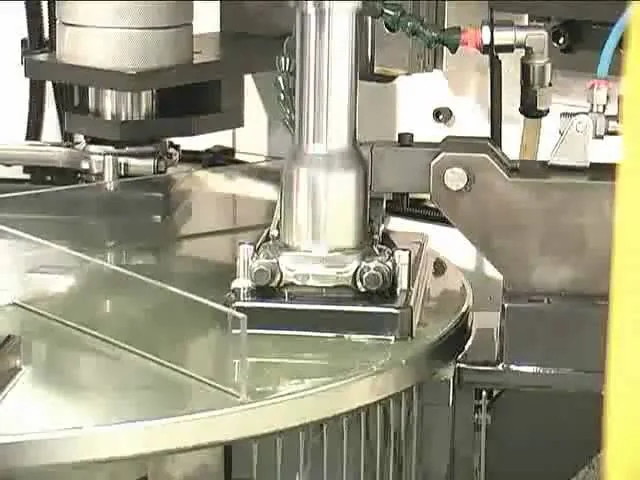

VH1 1/0-T4-K
Suitable for connecting rod big end machining.
- automatic tool wear compensation
- bore taper control with stroke correction
- 100% diameter control
Units built
- MC 017 Connecting rod
Honing machines
VH1 3/0 – 3K – T8
Ideal for medium productions, with high material removal.
Set up:
- n. 3 multi-stroke spindles: – n. 3 diameter control gauges with automatic tool wear compensation
- bore taper control with stroke correction
- workpiece holder with 8-positions rotary table
- manual loading / unloading of the piece in masked time
Units built
- MC 010 Motorcycle cylinders

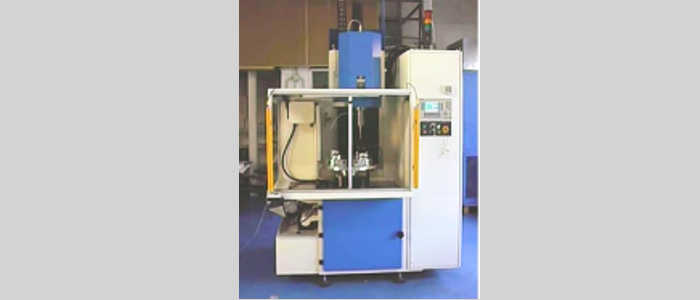

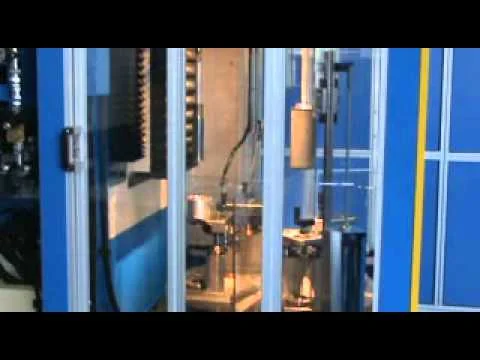

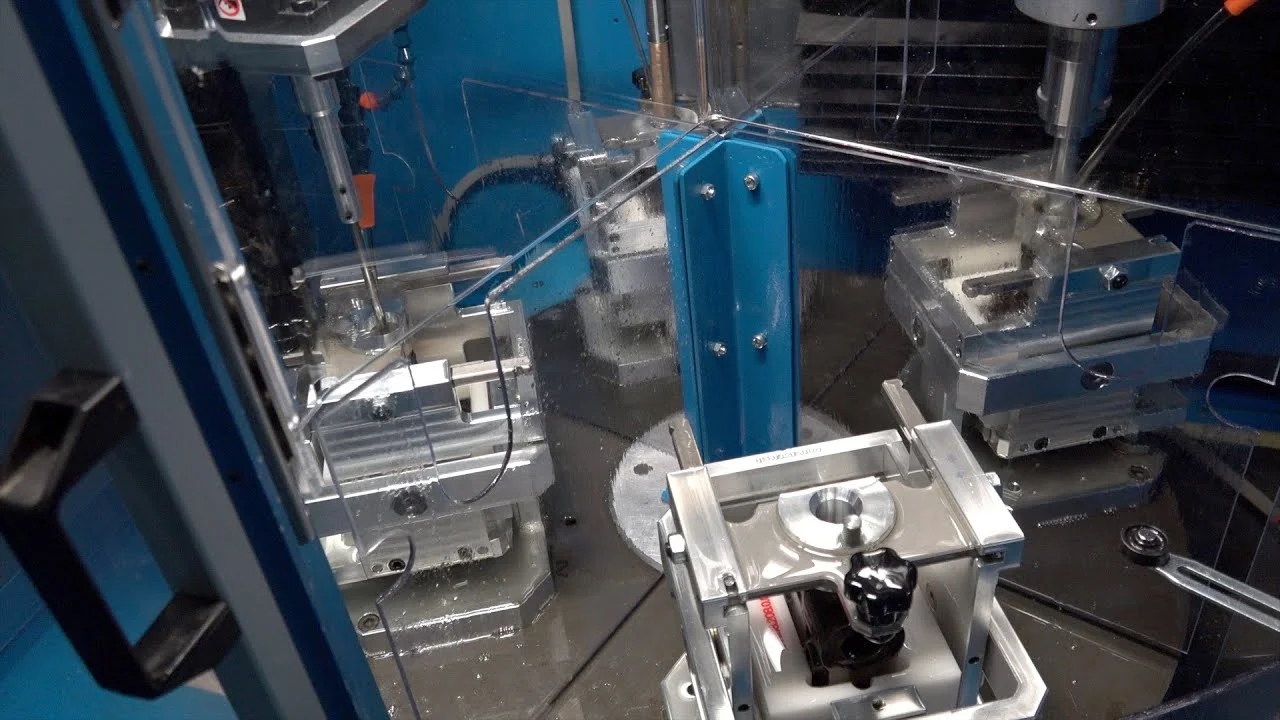

VH0 1/0 – T4
Ideal for small production lots.
Set up:
- n. 1 multi-stroke spindle
- 4-position rotary table
- manual piece loading / unloading in masked time
Units built
- MC 011 Mechanical
- MC 016 Diesel injection
- MC 022 Hydraulics
- MC 032 Cylinders

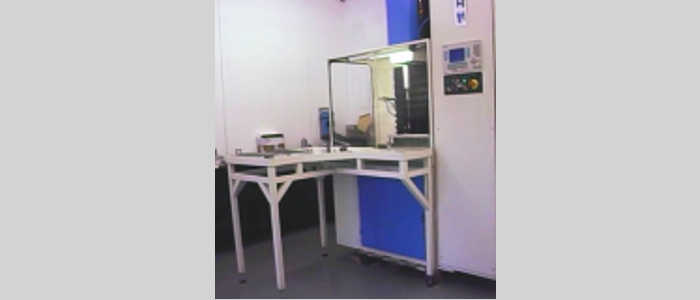

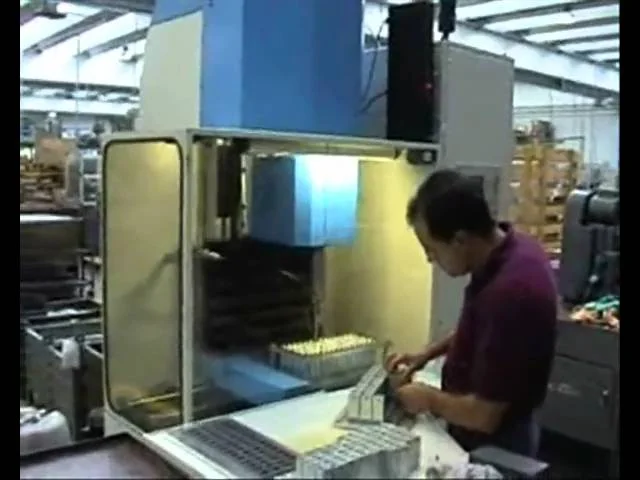

VH0 1/0 – XY-K
For mid-volume applications; over 60 small pieces can be loaded on the pallet.
Set up:
- n. 1 multi-stroke spindle
- k electro-pneumatic gauge for diameter post-process control and tool wear automatic compensation
- workpiece holder: XY table
- manual piece loading / unloading of a preloaded pallet in a position other than the working one
Units built
- MC 002 Hydraulics
- MC 008 Tools
- MC 009 Hydraulics
VH0 1/0-X
Ideal for very heavy pieces or with multiple bores in line.
Set up:
- n. 1 multi-stroke spindle
- workpiece holder: X slide with controlled axis
- piece loading / unloading: manual in a different position from the working one
Units built
- MC 005 Hydraulics
